Camera inspection: $300–$750
The first and non-negotiable step. Most operators credit it against the works if you proceed.
CCTV Surveyed, Then Relined
No-Dig Pipe
Relining In
Smithfield
A cracked or root-damaged drain does not have to mean a trench through the garden. A resin liner is cured inside the existing pipe from an access point you already have, sealing every joint along the run, and the surface above is never touched.
- Licence 368473C, fully insured
- Before and after footage, yours to keep
- We say so when digging is the better answer
What Relining Actually Is In Smithfield
Relining is a structural repair, not a cleaning method, and the distinction matters when you are comparing quotes. Jetting restores flow through a pipe that is still cracked. A liner restores the pipe.
That also means it is not always the answer. It cannot correct a run that has sagged or lost its fall, and it has nothing to line against where a section has collapsed. A camera survey separates those cases in about an hour, and the answer changes the cost by a multiple.
What the mid-century housing stock has underground
Smithfield’s 1950s and 60s cottages mostly retain their original earthenware drains, now cracked and offset after seventy years of ground movement.
Houses of this era were generally drained in vitrified clay, laid well, and then left alone for sixty or seventy years. The pipe is usually still round and still sound. The joints have had seven decades of ground movement and root pressure.
That combination is close to the textbook relining case, which is why so much no-dig work in Sydney happens on streets built between the late 1940s and the 1960s.
Cracks that follow the seasons
A crack that opens in summer and closes in winter produces a fault that comes and goes, which is maddening to diagnose and very easy to dismiss as bad luck.
A liner is continuous through the affected length, so seasonal movement no longer has a joint to work on. On reactive ground that is the difference between a repair that lasts and one that reappears the next dry summer.
Shared lines, landlords and who authorises the work
In a strip of tenancies the drainage is frequently shared, which means the fault is often not under the premises reporting it, and the party who pays is not always the party who called.
That is worth settling before the quote rather than after. Camera footage with distances marked from a known access point is what makes the conversation with a landlord or a neighbouring tenant short, because it shows exactly where the defect sits.
Why earthenware is the ideal host for a liner
Clay is rigid, round and predictable, and that geometry is exactly what a liner wants. The resin sleeve cures hard against a barrel that holds its shape, and the short pipe lengths that make clay joint-heavy are the same joints the liner seals in one pass.
So the material that causes the most recurring blockages in older streets is also the easiest to repair properly without digging. That is a genuinely lucky combination and it is why relining suits this housing stock so well.
Keeping the tree and fixing the drain
Removing a mature tree is expensive, often needs approval, and frequently does not solve it: the roots already inside the pipe do not leave when the trunk does, and the joint is still open for the next one.
Established street trees and backyard figs across residential Smithfield work their roots into every open joint in the ageing sewer network.
Relining lets both things be true at once. The garden stays as it is and the drain stops being a route to water. For most owners that is the whole appeal, and it is why no-dig gets specified on established blocks far more often than on new ones.
What it costs in Smithfield
Per metre for a liner, $500–$900
Domestic sewer across Sydney in 2026. Longer single runs sit at the lower end of it.
A junction or patch repair, $1,500–$4,000
Seals one defect. Right where the rest of the run is sound and the ground is stable.
A whole domestic line, $6,000–$15,000
Length, diameter and how many branches need reinstating are what move the number inside that band.
Digging it up, from $2,500 plus making good
Excavation is only half the cost. Replacing the driveway or garden above it is the other half.
Indicative Sydney ranges for 2026. Your job is quoted in writing after the camera survey. Figures here are indicative of the 2026 Sydney market rather than a quote from us, you get your own number as a fixed price before any work starts.
How A Relining Job Runs
Step 01
Step 01

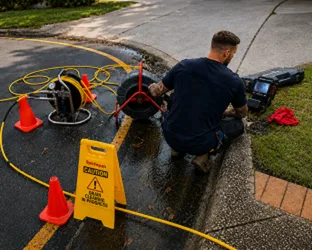

Camera The Line
A CCTV survey establishes the material, the diameter, where the defects are and how far they sit from the access. You see the footage, and it is what the quote is built from.
Step 02
Agree The Method
Patch or full length, and occasionally excavation instead. We will tell you when digging is the better answer even though it is the bigger quote.
Step 03
Clean, Line And Cure
The run is jetted so the liner bonds to pipe rather than debris, the liner is installed through the existing access, and it cures in place. Most domestic jobs are a single day.
Step 04
Reinstate And Re-Camera
Every branch the liner passed is reopened from inside, then the run is cameraed again so you can see it is continuous and the junctions are clear.
Want The Camera Run First?
Describe what the drain is doing and how often. We will tell you whether it sounds structural or whether a clean and a maintenance interval is the honest answer.
Cured-in-place liners are generally rated at around fifty years, comparable to a new pipe and usually longer than the remaining life of the earthenware they are installed into. The reason the figure is that high is structural rather than promotional: a liner has no joints along its length, and joints are what fail. Most warranties on the workmanship run considerably shorter than the rated life of the material, so ask what you are actually being given.
Most domestic relining is a single day on site: set up at an existing access point, jet and camera the line clean so the liner bonds to pipe rather than debris, install, cure, then reinstate the junctions and camera it again. Water is off for part of the day. Larger or commercial runs are staged, and are often scheduled overnight or across one closed day so the premises can trade.
No. A liner takes the shape of the pipe it cures inside, so it cannot correct a run that has sagged into a belly or lost its fall, and it has nothing to line against where a section has collapsed. Badly deformed or crushed pipe needs replacing. What relines well is the common case: a sound barrel with cracked or open joints, which is most older clay drainage.
One of the best. Houses of that era were generally drained in vitrified clay, laid well, and then left alone for six or seven decades. The barrel is usually still round and sound while the joints have had seventy years of ground movement and root pressure. That is close to the textbook case for a liner.
Almost certainly, and it is a common one on reactive ground. A crack that opens in summer and closes in winter produces a fault that appears and disappears, which is easy to dismiss as bad luck. A liner is continuous through the affected length, so seasonal movement no longer has a joint to work on.
In a strip of tenancies the drainage is often shared, so the fault is frequently not under the premises reporting it. Settle it before the quote rather than after. Camera footage with distances marked from a known access point is what makes the conversation with a landlord or neighbouring tenant short, because it shows exactly where the defect sits.
Often yes, and that surprises people. A well laid clay line of that age usually still has a sound barrel; what has gone is the mortar or rubber at each joint, and there is one every few hundred millimetres. You are sealing a long series of small openings, not replacing a pipe, and that is exactly what relining is for.
